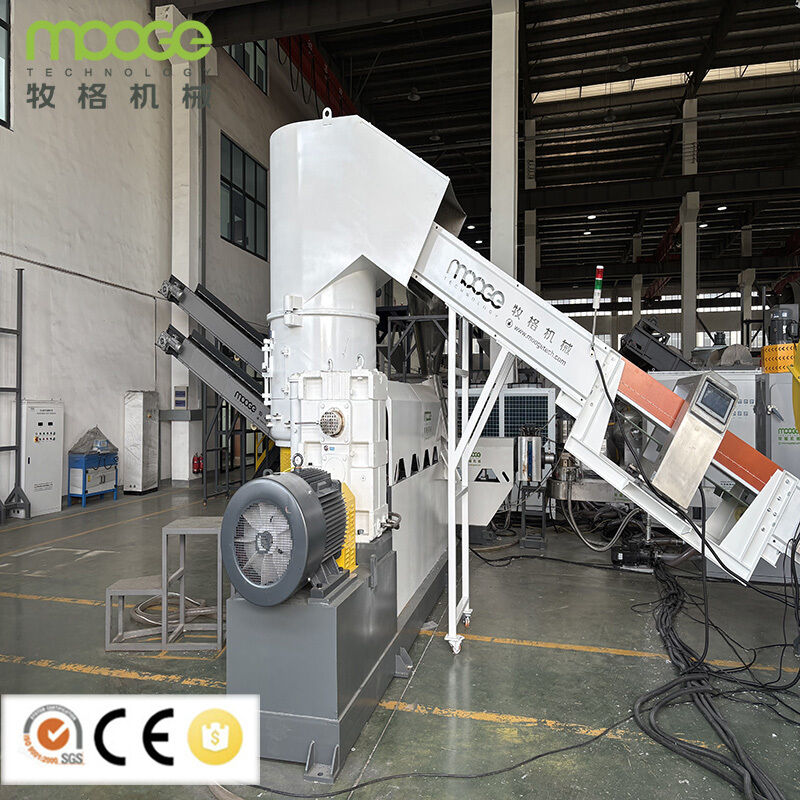

PP PE Film Scrap Recycling Pelletizing Extruder Machine for Plastic Granules Manufacturing

contacto

PP PE Film Scrap Recycling Pelletizing Extruder Machine for Plastic Granules Manufacturing

Quantidade de ordem mínima :	1 conjunto	Preço :	USD 50000-120000 SET
Detalhes da embalagem :	Pacote de exportação padrão	Tempo de entrega :	60 dias úteis
Habilidade da fonte :	1 SET PER 75-80 dias

Lugar de origem:	China	Marca:	MOOGE
Certificação:	CE ISO	Número do modelo:	RSS-SJ120

Informação detalhada
Tipo de máquina:	máquina granuladora de resfriamento de fio de sacos tecidos pp	Tensão:	380V 50HZ 3Phase ou personalizado
Contator:	Schneider	Caixa de velocidades:	Guomao
Medidor de temperatura:	Omoron	Material do parafuso:	38CrMoALA
Marca do inversor:	ABB ou Delta	Velocidade rotativa do parafuso:	1-115 rpm
Parafusos L/D:	28-33:1	Método de corte:	corte de anéis de água
Método de filtro:	Placa de troca hidráulica	Produto final:	pellet com tamanho de 3mm
Destacar:	PP PE film recycling pelletizing machine , plastic granules manufacturing extruder , plastic pelletizing machine with warranty

Descrição de produto

Product Description

MOOGE has over 20 years of expertise in plastic recycling machinery. Our philosophy is to make the world better with recycling. MOOGE is committed to continue developing better and more powerful technologies. More than 20 years of experience in plastic recycling processing helps us to actively contribute to the success of our customers by providing sustainable solutions that meet the needs of the industry.

Plastic pelletizing is a system and technology in which plastic scraps are recycled back into a reusable raw material. The melt-filtrated strands are cooled briefly and cut into pellets. Plastic manufacturers or processors can then reuse it for a variety of applications. Plastic pelletizing machine for recycling plays a crucial role to recycle and reuse plastic wastes. More and more manufacturers are looking for ways to reduce waste and recycling materials in their processes.

Plastic pelletizing machine list include:

1. CBD-1000 Conveyor Belt

2. Metal detector

3. Compactor Force Feeder

4. Screw Extruder (mother stage)

5. Hydraulic Screen Changer-Double Pillar
6. Vacuum Degassing Die Head

7. Screw Extruder (baby stage)
8. Hydraulic Screen Changer--Double Pillar
9. Vertical Die Face Cutting System

10. Water Cooling Tank
11. Dewatering Machine

12. Vibration Screen
13. Air Feeding System &Silo Storage

14. Electric Control Cabinet

Why Choose with us:

1. Wide range of materials processing: No matter the type of the material such as pe film, pp woven bags,jumbo bags etc. , all materials can be processed in the machine. 2. Energy saving: It reduces the overall energy consumption up to 20-25%. 3. Labor cost saving: Only 1 ~ 2 operators are needed to operate the whole plant. 4. Output capacity: In comparison to traditional recycling pelletizing machines, us machines provide higher output capacity(According to incomplete statistics, the output can be increased by about 10% compared with the traditional granulator.) 5. Granules: Looks good and more fuller

Waste Plastic Before Us Plastic Pelletizing Machine

Waste Plastic After Us Plastic Pelletizing Machine

Product Parameters

Single Stage Extruder Plastic Pelletizing Machine (Mother Stage)
Model	Extruder Stage	Screw Diameter:MM	Screw Power:KW	Capacity:KG/H
RDS-SJ 100	1	100	45	150-200
RDS-SJ 120	1	120	75	200-300
RDS-SJ 150	1	150	110	400-500
RDS-SJ 160	1	1600	132	500-600
RDS-SJ 180	1	180	160	600-800
RDS-SJ 200	1	200	200	800-1000

Double Stage Extruder Plastic Pelletizing Machine (Mother And Baby Stage)
Model	Extruder Stage	Screw Diameter:MM	Screw Power:KW	Capacity:KG/H
RSS-SJ 100	2	100	45KW+22KW	150-200
RSS-SJ 120	2	120	75KW+30KW	200-300
RSS-SJ 150	2	150	110KW+37KW	400-500
RSS-SJ 160	2	160	132KW+37KW	500-600
RSS-SJ 180	2	180	160KW+45KW	600-800
RSS-SJ 200	2	200	200KW+45KW	800-1000

Machine Video & Details

00:13

00:33

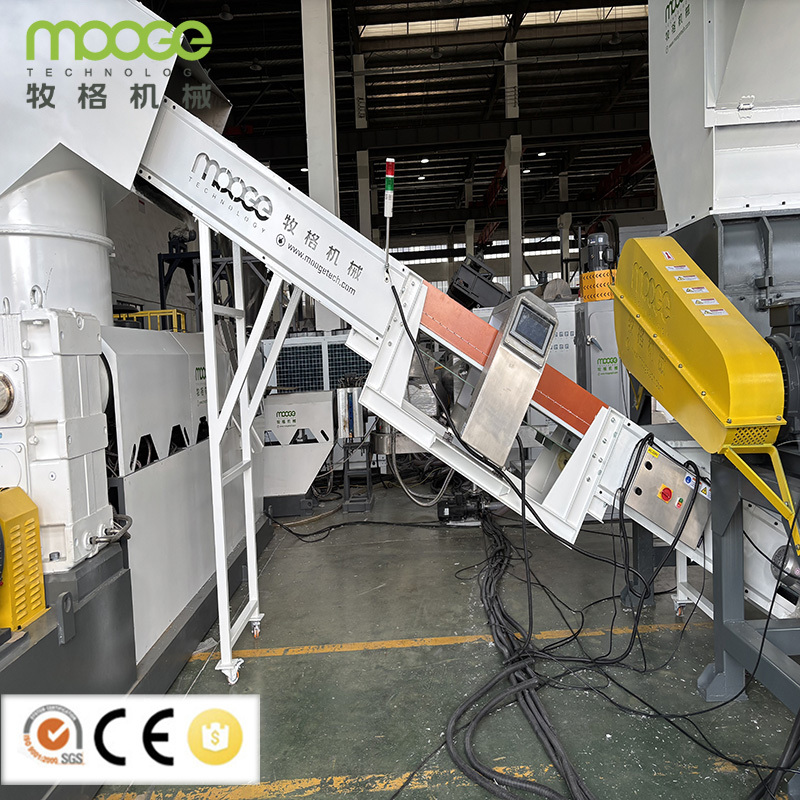

Conveyor Belt + Metal Detector Machine

Automatic and inverter control feeding plastic to extruder machine ,conveyor belt bottom have wheel ,easy moving . by metal detector machine, automatic checking metal and stop feeding , manual remover metal

Compactor Force Feeder - Agglomerator

Powerful chassis compaction system, sharping blades, and excellent water cooling system ensure that the equipment can match different types of materials. Rotation speed:750r/min Rotation knife:12 PCS Fixed knife:15 PCS Thermocouple:1 Diameter:1500mm

First Stage Mother Extruder Barrel And Screw

Our screws are highly nitrided, wear-resistant, and have a long life. They also use high-performance ceramic heaters to quickly plasticize the plastic inside the barrel for extrusion.

Screw and barrel material: 38CrMoAlA
Nitriding thickness: 0.5-0.7mm Screw surface hardness: 900-1000HV

With pressure sensor to detecting the pressure to protecting the Extruder and screen changer; Once the pressure is high, it will automatic alarm

Economic Model-Board Model

this is economic model filter for pelletizing line

it have double board,four board etc.

Advance Model-Laser Filter

this is advance model - later filter

more good filter and more good quality for granules

Double Pillar Hydraulic Filtration System-Standard Model

Equipped with high-speed hydraulic switching device, larger melt filtration area, fine filter screen, higher pressure load, no leakage during operationPressure Max: 30Mpa Heating temperature: less than or equal to 300 degrees .we also supply economic board screen changer and laser model screen changer

Second Stage Baby Extruder Barrel And Screw

The same configuration as the first stage extruder, excellent performance for secondary filtration, to obtain a cleaner melt

Screw and barrel material: 38CrMoAlA
Nitriding thickness: 0.5-0.7mm Screw surface hardness: 900-1000HV

With pressure sensor to detecting the pressure to protecting the Extruder and screen changer; Once the pressure is high, it will automatic alarm

Second Hydraulic Filtration System

in second stage ,use more higher filter screen .such as a 120-mesh filter. After two filtrations, more impurities are filtered out.Pressure Max: 30Mpa Heating temperature: less than or equal to 300 degrees

Vertical Pellet Cutting System
Vertical pelletizing, matching different recycled materials, using high-quality alloy cutter heads, fast cutting, allowing the material to enter the cooling and molding system

Cutting blade Qty: 4PCS Die mould Made by the 40Cr material with forging treatment, surface been nitriding treatment and buffing. Material out coming holes diameter: 2mm

Watering Cooling System

Linear cooling water tank, fast flushing cooling particles, 304 stainless steel material

equipped with 1.5kw cold water circulation pump

High Speed Dewatering Machine High Speed Dewatering Machine-304 Stainless Steel 1500 rpm high speed spindle, strong centrifugal force, low water content Inside rotor is special design as hexagon Machine bottom have one waste water collecting tank with filtering mesh to clean the water before drain

Double Layer Vibrator machine

Use double-layer high-efficiency vibrating screen to screen high-quality and full particles

Motor Power: 0.4KWx2
Made by stainless steel
First layer to screen out bigger size material
Good material goes out from middle
Dust get out from the bottom

Air Conveyor Pipe

Large diameter pipe, easy to blow particles to the storage hopper, stainless steel material, wear-resistant and long service life

Blower power: 4KW
Conveying pipe diameter: 133mm
conveying pipe Made by stainless steel SUS304

Packing Storage Silo
Silo volume: 2m3 Made by stainless steel SUS304

Machine Control Panel System

Switch: SCHNEIDER brand
Temp. Meter: OMRON brand of Japan
Contactor: SCHNEIDER/SIEMENS Brand
Main invertor: “ABB” Brand
Other electronics : DELIXI Brand

Our Teams

Our Service Team

Service Before Sale

1. 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )

2. Professionally and patiently introduction,details pictures and
working video to show machine

Service On Sale :

1. Test every machine and inspect the machine seriously . 2. Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok . 3. Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.

Service After Sale

1. Free insurance for goods

2. 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.

Customer Feedback

Packing & Delivery & Install

Our Factory

Our factory located in zhangjiagang city,suzhou,jiangsu province, the company covers an area of more than 10,000 square meters, mooge tech group is a focus on machinery manufacturing and research andDevelopment of enterprises. The company takes "honesty, innovation, quality, service" as the core value, and is committed to providing customers with efficient, high-quality machinery and equipment and services. Since its establishment, mooge machinery has always insisted on innovation drive, focusing on technology research and development and investment, with a professional r&d team and advanced Production equipment. The company's main products include plastic recycling machinery, crusher, shredder, granulator, pelletizing Machinery, solid waste processing equipment, non-metallic recycling processing equipment, etc., which are widely used in plastic processing,packaging.Resource regeneration, environmental protection recycling and other fields.
